AnyConnect VPN DTLS vs TLS

Difference

DTLS is used for delay sensitive applications (voice and video) as its UDP based while TLS is TCP based

DTLS is supported for AnyConnect VPN not in IKEv2

How it works?

• SSL−Tunnel is the TCP tunnel that is first created to the ASA
• When it is fully established, the client will then try to negotiate a UDP DTLS−Tunnel
• During DTLS negotiation, traffic will be passing over TLS tunnel
• When the DTLS−Tunnel is fully established, all data now moves to the DTLS−tunnel and the SSL−tunnel is only used for occasional control channel traffic
• In case of failures in establishing DTLS Tunnel, traffic will continue passing over TLS tunnel
• After establishing DTLS, in the event of failure in DTLS Tunnel, traffic will pass over TLS tunnel until DTLS tunnel is reestablished

How Data is Forwarded?

• For each packet there is a part in AnyConnect client code which decides whether to send the packet over TLS or DTLS
• If the DTLS tunnel is established, the code will decide to forward the packet over DTLS and start encryption
• If the DTLS is dead, the code will decide to forward the packet over TLS and start encryption

• The key point is the performance of DTLS tunnel
• Since DTLS is based on UDP, it is unreliable and there is no flow control to decide its performance
• Performance can be determined using DPD packets
• When DPD is triggered and no response received, AnyConnect client will start forwarding packets over TLS (assuming TLS is up and DTLS is unhealthy)
• Therefore, there is a packet drop period between DTLS failing and DPD triggering/detection. During this time, AnyConnect client will be forwarding packets over DTLS but they will be lost because DTLS is unhealthy
• In case DTLS is established again, AnyConncect client will forward packets over DTLS
• For receiving ASA with healthy DTLS and TLS, it will reply based on the receiving tunnel, i.e. if packets received over TLS, the response will be over TLS even if DTLS is healthy

What about Idle timeout?

• When a DTLS−Tunnel is active, that is the only tunnel where idle timeout matters. Because very little control channel traffic passes over the SSL−Tunnel, it is almost always idle so it is exempt while there is an active DTLS−Tunnel. If something happened to UDP and the DTLS−Tunnel was torn down, then idle timeout would apply to the SSL−Tunnel

Configuration

DTLS is enabled by default but you can enable it or distable using CLI.

It can be enabled/disable per interface terminating AnyConnect VPN

webvpn

 enable if-name tls-only

Also, you can enable/disable DTLS at Group Policy level

webvpn

 dtls port 443

!

group-policy custom_group_policy attributes

 wins-server none

 dns-server value 10.170.7.99 10.170.7.100

 vpn-tunnel-protocol ssl-client ssl-clientless

 split-tunnel-policy tunnelspecified

 split-tunnel-network-list value sslvpn_split_tunnel

 default-domain value shelfdrilling.com

 split-dns none

 split-tunnel-all-dns enable

 webvpn

  anyconnect ssl dtls enable

  anyconnect mtu 1420

  anyconnect profiles value sslvpnfromrdpprofile type user

  customization value ShelfDrilling-Customization

  always-on-vpn profile-setting

The Importance of Understanding MTU value in AnyConnect VPN

Why do we need it?

During encryption, additional overhead will be added to the packets made by new headers and features. This means that the actual size of the unencrypted TCP segment or UDP datagram which holds the application will be reduced because the MTU of the adapter is still same.

For example with Ethernet and MTU of 1500-bytes, the unencrypted TCP segment can't be more than 1460-bytes. With encryption, for Ethernet and MTU of 1500, the unencrypted TCP segment can't be more 1380 (can be different value). The 80-bytes difference are utilized by encryption overhead.

Now the value of unencrypted TCP segment can be more which leads to MTU more than 1500-bytes but this will cause the networking devices to fragment the packet which is bad and should be avoided.

AnyConnect client builds Virtual Adapter (VA) during installation on the clients machine. This VA will receive unencrypted traffic and emulates Ethernet to forward traffic after encryption. The actual traffic then goes over the physical adapter.

Therefore, we need to know what is the MTU value of the VA and what is the max allowed size of unencrypted traffic to avoid fragmentation. Later the applications need to make sure that they don't create segments and datagrams larger else they will be fragmented.

How it works?

AnyConnect VA gets its MTU value from SSL Server (ASA or IOS. We will focus more on ASA). The default value is 1406-bytes. It can be configured as follow:

group-policy custom_group_policy attributes

 webvpn

  anyconnect mtu 1420

Now the actual MTU used by the VA will be selected based on the smaller between physical NIC MTU and VA configured MTU. This is to avoid scenarios where the VA has MTU configured more than physical NIC which will trigger fragmentation.

Next we need to find out the max value of unencrypted payload. Two values will be calculated, one for TLS Tunnel and one for DTLS tunnel. This can be viewed in ASA using the command debug webvpn anyconnect 1

……

……

Iphdr=20 base-mtu=1300 def-mtu=1500 conf-mtu=1420

tcp-mss = 1260

path-mtu = 1260(mss)

TLS Block size = 16, version = 0x301

mtu = 1260(path-mtu) - 0(opts) - 5(ssl) = 1255

mod-mtu = 1255(mtu) & 0xfff0(complement) = 1248

tls-mtu = 1248(mod-mtu) - 8(cstp) - 20(mac) - 1(pad) = 1219

DTLS Block size = 16

mtu = 1300(base-mtu) - 20(ip) - 8(udp) - 13(dtlshdr) - 16(dtlsiv) = 1243

mod-mtu = 1243(mtu) & 0xfff0(complement) = 1232

dtls-mtu = 1232(mod-mtu) - 1(cdtp) - 20(mac) - 1(pad) = 1210

computed tls-mtu=1219 dtls-mtu=1210 conf-mtu=1420

DTLS enabled for intf=2 (CORP)

tls-mtu=1219 dtls-mtu=1210

……

……

Let's examine the debugs

Iphdr=20 base-mtu=1300 def-mtu=1500 conf-mtu=1420

!!!... Iphdr is 20 bytes, Physical NIC MTU is 1300, configured MTU value for AnyConnect VA is 1420. Conclusion, Physical NIC MTU is used for VA.

!!!... Now will start TLS Tunnel calculations

tcp-mss = 1260

path-mtu = 1260(mss)

!!!... Since TLS is TCP based, the TLS payload size is MTU - 40. 40-bytes is 20-bytes IP Header + 20-bytes TCP Header

TLS Block size = 16, version = 0x301

mtu = 1260(path-mtu) - 0(opts) - 5(ssl) = 1255

mod-mtu = 1255(mtu) & 0xfff0(complement) = 1248

tls-mtu = 1248(mod-mtu) - 8(cstp) - 20(mac) - 1(pad) = 1219

!!!... Subtracting headers (5-bytes ssl header, 1-byte padding, 8-bytes Cisco SSL Tunneling Protocol (CSTP) header, 20-bytes MAC), we will get the size of unencrypted payload. This will be communicated back from ASA to AnyConnect client so that applications shouldn't cross this value else fragmentation will be triggered

!!!... Note: ANDing MSS value will complement 0xfff0 is to make sure that MSS value is power of 2

!!!... Now will start DTLS MTU calculations

DTLS Block size = 16

mtu = 1300(base-mtu) - 20(ip) - 8(udp) - 13(dtlshdr) - 16(dtlsiv) = 1243

mod-mtu = 1243(mtu) & 0xfff0(complement) = 1232

dtls-mtu = 1232(mod-mtu) - 1(cdtp) - 20(mac) - 1(pad) = 1210

!!!... Subtracting headers (20-bytes IP header, 8-bytes UDP header, 13-bytes DTLS header, 8- or 16- bytes for encryption [depending DES or AES], 1-byte Cisco DTLS Tunneling Protocol [CDTP] header, 20-bytes MAC, 1-byte pad), we will get the size of unencrypted payload. This will be communicated back from ASA to AnyConnect client so that applications shouldn't cross this value else fragmentation will be triggered

computed tls-mtu=1219 dtls-mtu=1210 conf-mtu=1420

DTLS enabled for intf=2 (CORP)

tls-mtu=1219 dtls-mtu=1210

Message Authentication Code (MAC)
A Message Authentication Code is a one-way hash computed from a message and some secret data.  It is difficult to forge without knowing the secret data.  Its purpose is to detect if the message has been altered.

QoS Enhacements in CUCM 11.X

• These were added in CUCM v11
• The main enhancements are:
• Separating UDP Port Ranges for Audio and Video
• Separating DSCP Markings for Audio and Video streams in Video Calls
• You can have separate markings for audio in Telepresence video call than Fixed video call

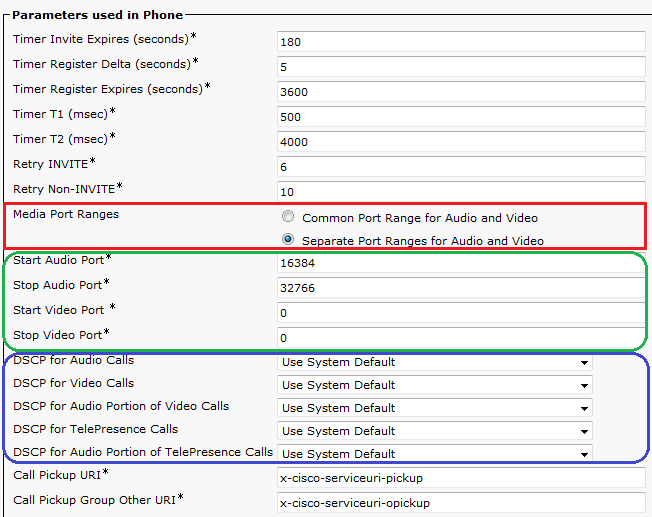

• Navigate to Device > Device Settings > SIP Profile.


• Current endpoints which support this enhancement (03/11/2016)

Video Endpoint	DSCP for Audio Portion of Video Calls	DSCP for Audio Portion of TelePresence Calls
8800 Series	Yes	N/A
8900 Series	No	N/A
9900 Series	No	N/A
Jabber	Yes (Jabber for Windows uses Group Policy Objects to mark traffic on the PC else DSCP will be set to '0'. All other Jabber clients are able to mark DSCP natively)	No
DX Series	Yes	Yes
TX Series	N/A	Yes
IX Series	N/A	No
CE 8.x Software Series (SX Series, MX Series G2, MX700, MX800)	N/A	Yes
TC 7.1.4 Software Series (C Series, Profile Series, EX Series, MX Series G1)	N/A	Yes
EX Series (TC Software)	N/A	Yes

• Restrictions
• These features are supported on SIP endpoints Only
• For Jabber Softphones, only separate UDP ports can be used. This is because Windows OS doesn’t allow DSCP markings natively (can be fixed by registry tweak or using GPO)
• Prior to this feature, Jabber Client will divide the RTP Port Range received in TFTP File into two splits. Lower half will be used for audio and upper half will be used for video

Enable DSCP Markings on Windows OS (7, 8, 10)

By default windows OS will set DSCP markings to '0' ignoring the marking settings on the client. This can be good and bad.

A good scenario is to make sure that torrent clients aren't getting priority (while ideally your enterprise network qos policies should overcome this problem as well)

A bad scenario is overriding DSCP markings from Jabber Client which marks packets genuinely  for seperating audio and video streams treatment.

While you can still overcome the problem of Jabber Client using network QoS policies, you can allow QoS marking on windows OS as follow:

1. Go to HKLM\System\CurrentControlSet\Services\Tcpip\QoS. If "QoS" folder doesn't exist there - create it.

2. Add a DWORD parameter named "Do not use NLA" and assign "1" as its value.

3. Reboot.

Notes on Self-Service ID

• The Self-Service User ID is generate automatically once the primary extension is assigned to the End User
• The Primary extension can be assigned manually, using LDAP or using BAT
• For LDAP Self-Service IDs it will be generated during the 1st LDAP sync (not on LDAP update)
• Self-Service ID will be generated only if the user doesn't have one
• For upgrades from Pre-10.x to 10.x, Self-Service ID will be generated for users with Primary Extensions
• When same DN is assigned to multiple partitions and to multiple users as primary extension, Self-Service ID will be made unique by prefixing a code of *01, *02, etc
• You can change the Self-Service ID, manually from End User configuration page

LDAP Enhancements in CUCM

• CUCM can synchronize users and groups from LDAP
• Introduced in version 11
• LDAP Filter can be created for users and groups
• Primary use to have Active Directory groups available in the Cisco Jabber contact list
• CUCM can assign Access Control Groups to LDAP users from synchronization Agreement
• CUCM can assign Feature Group Template to LDAP users from synchronization Agreement
• This will assign User Profile to synched user which includes UDT and ULT
• This will assign Service Profile to synched user which include UC Services (IMP, CUC, etc for jabber)
• This will configure user settings such as Enable Mobility, Enable EMCC, Allow End User to Host Conference Now
• This will allow user to run Self-Provisioning
• CUCM can create DNs for LDAP users and assign them as primary extension using the option Apply mask to synced telephone numbers to create a new line for inserted users
• The DNs will be based on the TelephoneNumber or ipPhone attributes configured in AD
• A mask can be applied to these attributes to manipulate the created DNs
• In case the synched users are missing phone numbers, CUCM can allocate DNs dynamically from pre-configured pool using the option Assign new line from the pool list if one was not created based on a synced LDAP telephone number
• Navigate to System > LDAP > LDAP Search to integrate CUCM environment with LDAP Environment without synchronization
• This feature will enable all endpoints and Cisco mobile and remote access clients in the enterprise to perform user searches against an enterprise directory server, even if those endpoints and clients are operating outside the enterprise firewall

CUCM Self-Provisioning

• This feature allow end-users or administrators to provision phones with minimum admin work
• It was introduced with CUCM 10.x
• The users need to follow the prompts on the phones to login to CUCM which will auto-provision the phones
• How it works?
• The phone auto-registers with CUCM
• During auto-registration it gets an idle URL.
• This idle URL points the phone to self-provision XPS resource running on CUCM
• Once the phone contacts the XPS resource, it will be prompted for user ID/pin
• From here there are two approaches to complete Self-Provisioning
• Option#1
• When the users enter the user ID and PIN, they are authenticated with the CM and their primary extension is determined
• The users are then prompted to confirm that they wish to provision the phone using their primary extension. If they confirm, the phone will be provisioned and reset
• Option#2
• The users can call Self-Provision IVR
• The users need to enter Self-Service ID and PIN
• Upon confirmation, the phone will be provisioned using the End User Primary Extension
• To disable self-provisioning, delete the idle URL from phones configuration, enterprise parameters, auto-registration Universal Device Template (UDT)
• To configure Self-Provisioning
• Verify UDT assigned to System > Cisco Unified CM > Auto Registration Information > Universal Device Template.
• This UDT should have idle URL configured https://x.x.x.x:443/cucm-uds/xps/selfProvision
• By default Auto-Registration Template is assigned which has the idle URL
• Navigate to User Management > User/Phone Add > Universal Line Template > Add New
• Assign default Partition and CSS to be used for self-provisioned DN
• Configure other settings such as Call Forwarding, Enterprise Alternate Number, +E164 Alternate Number
• Configure auto-registration settings under System > Cisco Unified CM > Auto Registration Information
• Assign UDT, ULT and Starting/Ending Directory Numbers
• Navigate to User Management > Self-Provisioning and configure the authentication method for end users to run self-provisioning
• Require Authentication
• No Authentication: In this mode the end users need to enter the username which will trigger the provisioning without a need for PIN/Password
• Navigate to User Management > User Settings > User Profile > Add New
• This user profile will be used to configure the device and line settings of the phone during self-provisioning
• Assign UDT for Desk Phones, Mobile and Desk Devices and RDP
• Assign ULT
• Enable Allow End User to Provision their own phones and set the max number of phones to be self-provision
• Navigate to User Management > User/Phone Add > Feature Group Template > Add New
• This is used with users synced from AD or users added using quick add feature
• It will assign Users Profile to synced users
• It will assign Service Profile to synced users
• It will configure users settings for synced users such as Enable IM and Presence, Enable Mobility, Enable EMCC, Enable End User to Host Conference Now
• Add End User
• The main parameters in end user settings needed for self-provisioning are:
• User Profile
• Primary Extension
• In case the End Users are synced from AD or added using Quick Add, the User Profile will be synched using Feature Group Template
• Primary extension should be created manually in case of Quick Add or synched automatically in case of AD
• In case the End Users are added manually, these parameters needs to be assigned manually.
• Setup Self-Provision IVR
• Configure CTI Route Point which can be dialed from Auto-Registeration CSS
• Configure Application User with Standard CCM EndUser and Standard CTI Enabled access control groups
• Associate the CTI Route Point as controlled device to Application User
• Navigate to User Management > Self-Provision and assign the CTI Route Point and Application User
• Troubleshooting Self-Provision IVR
• IVR Component runs on Publisher Node Only (it doesn’t run on Subscribers)
• If auto-registered phone doesn't get the configured Phone Button Template in UDT, make sure that Auto Registration Legacy Mode is False in the Enterprise Parameters
• This setting will disable UDT for auto-registration and fallback to Device Defaults
• Any change in the Application User or CTI Route Point needs a restart of IVR Self-Provisioning service
• If the auto-registered phone can't dial CTI Route Point DN, ensure that the region bandwidth between CTI and Phone is greater than 8000

Summary of CUCM Supported Codecs

I just thought to put a summary list of CUCM supported codecs

• G.711: It has two versions, A-Law & Mu-Law. You can disable CUCM support for G711 using the service parameter G.711 mu-law Codec Enabled or G.711 a-law Codec Enabled
• G.722: This is wideband codec that is always preferred by CUCM over G.711, unless Advertise G.722 Codec enterprise parameter is Disabled.

Enterprise Parameter Setting	Phone (Product-Specific) Parameter Setting	Phone Advertises G.722
Advertise G.722 Codec Enabled	Use System Default	Yes
Advertise G.722 Codec Enabled	Enabled	Yes
Advertise G.722 Codec Enabled	Disabled	No
Advertise G.722 Codec Disabled	Use System Default	No
Advertise G.722 Codec Disabled	Enabled	Yes
Advertise G.722 Codec Disabled	Disabled	No

When users use a headset that supports wideband, they can enable Wideband Headset feature from the phone settings for better quality. On the phone navigate to Settings > User Preferences > Audio Preferences > Wideband Headset.

Enabling the Advertise G.722 Codec parameter causes interoperability problems with UCCX CAD, call park and ad hoc conferences. Keep it disabled.

You can disable CUCM support for G722 from the service parameter G.722 Codec Enabled. If G722 Codec is disabled, Advertise G722 Codec enterprise parameter is ignored

• G.722.1: A low-complexity wideband codec operating at 24 and 32 kb/s.
• G.723.1: Low-bit-rate codec with 6.3 or 5.3 kb/s compression for Cisco IP Phone 12 SP+ and Cisco IP Phone 30 VIP devices.
• G.728: Low-bit-rate codec that video endpoints support.
• G.729: Low-bit-rate codec with 8-kb/s compression. The codec has 4 versions:
• G729: original codec. Uses high-complexity algorithm
• G729A or A annex: medium complexity variant of G.729 and it is compatible with G729. It is less complex but has slightly lower voice quality
• G729B or B annex: G729 with VAD and not compatible with the previous ones. It requires a transcoder
• G729AB: G729A with silence suppression and only compatible with G729B.

IOS can distinguish between all versions of G729 while CUCM can't. CUCM will treat G729r8 and G729ar8 equally. Similarly, CUCM will treat G729br8 and G729abr8 similarly.

By default Annex-B support is turned off in IOS and CUCM.

To enable AnnexB in IOS,

voice service voip

 sip

  g729 annexb-all

To enable AnnexB in CUCM, set the service parameter 'Strip G.729 Annex B (Silence Suppression) from Capabilities' to False

v=0

o=CiscoSystemsSIP-GW-UserAgent 2385 707 IN IP4 10.170.170.2

s=SIP Call

c=IN IP4 10.170.170.2

t=0 0

m=audio 29384 RTP/AVP 18 8 0 19

c=IN IP4 10.170.170.2

a=rtpmap:18 G729/8000

a=fmtp:18 annexb=yes

a=rtpmap:8 PCMA/8000

a=rtpmap:0 PCMU/8000

a=rtpmap:19 CN/8000

a=ptime:20

• GSM: GSM enables the MNET system for GSM wireless handsets to operate with CUCM. Assign GSM devices to a device pool that specifies 13 kb/s as the audio codec for calls within the GSM region and between other regions. Depending on device capabilities, this includes GSM EFR (enhanced full rate) and GSM FR (full rate).
• L16-Uncompressed: 16-bit linear pulse-code modulation (PCM) encoded audio with a 16-kHz sampling rate provides wideband audio at 256 kb/s.
• AAC-LD (mpeg4-generic): Super-Wideband codec
• AAC-LD (MP4A-LATM):  Super-Wideband codec

AAC-LD (mpeg4-generic) and AAC-LD (MPA4-LATM) are not compatible

• iSAC
• This is a wideband codec uses an adaptive bit rate of between 10 and 32 kb/s
• Each packet can contain 30 or 60 msec of payload). It has better tolerance to jitter and packet loss compared to G722 at half the bit rate

It has two modes:

• Adaptive: In this mode the target bit rate is adapted to give a bit rate corresponding to the available bandwidth on the channel. The available bandwidth is continuously estimated at the receiving iSAC and signaled in-band in the iSAC bit stream
• Independent: In this mode target bit rate has to be provided to iSAC prior to encoding; the target bit rate can be changed over the time of the call.

• iLBC: iLBC provides audio quality between that of G.711 and G.729 at bit rates of 15.2 kbps (38-bytes or 20msec) and 13.3 kbps (50 bytes or 30 msec). iLBC handles lossy networks in better way than G729 because it treats each packet independently. G729 depends on the previous packet to handle packet loss, jitter and delay which doesn't tolerate well in lossy networks.

Codec	Complexity	Protocol Support	Device Support
G711	Low	All	All
G722	High	SIP, H323, SCCP MGCP isn't supported	All
G722.1	Low	SIP and H323	All
G729	G729A & AB are medium G729 & G729B are high	All	All
iLBC	High	SIP, SCCP, MGCP H323 Slow Start H323 Inbound Fast Start Only (Outbound Fast Start not supported)	All
LATM	High	SIP	Video Endpoints and CUBE are supported RSVP is supported Xcoder isn't supported
iSAC	High	SIP and SCCP	CUBE and new endpoints are supported (7945/65 aren't supported) Media resources aren't supported

MoH Combined with other Media Resources

As we mentioned earlier MOH uses G711 is the only supported codec by default (other codecs can be enabled from IPVMS service parameters).

Let’s assume the following scenario, HQ-Region (which contains HQ-Phones, HQ-Servers, HQ-MediaResources) and BR1-Region (which contains BR1-Phones, BR1-MediaResources). In case HQ-Region to BR1-Region codec definition is G729 (and vice versa) and MOH Server at HQ site should be used by BR1-Phones, then how MOH will work??

NOTE: Here we are assuming that BR1 Phones are registered with HQ CUCM, i.e. no trunks are available between sites.

The simple way is to enable G729 codec for MOH Server from IPVMS service parameters. The other way is through XCODER. When MoH is invoked CUCM will realize that MOH is using G711 while the inter-region configuration should use G729. Therefore, it will invoke XCODE based on MoH MRGL. MOH MRGL can be assigned to MOH Device Pool; else MOH will pick XCODE from the null group.

NOTE: When CUCM invoke MOH, new call negotiation will take place between MOH and Phone including TCS negotiation, OLC, etc.

If we consider that BR1 Phones are registered to another cluster, for example CME, and HQ Site is connected to BR1 Site through ICT (H323/SIP). If HQ Phone places BR1 Phone on hold what will happen??

NOTE: We are maintaining the same assumption that HQ-Region to BR1-Region relation is G729. In this case BR1-Region is assigned to ICT.

In this case, CUCM will allocate MOH server based on ICT MRGL. Either G729 codec should be enabled from MOH server from IPVMS service parameters or XCODER will be invoked. An important note is that whether the ICT is running SIP or H323, MTP Required should be always enabled to get the functionality, This isn’t mandatory but due to bug only.

With MTP, the output will look as,

NOTE: When MOH is invoked new call negotiation will take place between CUCM and CME over ICT including TCS and OLC negotiations.

HQ#sh call leg act su

G  L     Elog A/O FAX T Codec    type Peer Address     IP R:

G0     L 83       N   ORG     T10    g729r8   VOIP        P         142.2.66.254:17734

G0     L 85       N   ORG     T4     g729r8   VOIP        P         142.2.64.254:17672

G0     L 86       N   ORG     T4     g729r8   VOIP        P         142.2.64.254:17502

G0     L 88       N   ORG     T4     g711ulaw VOIP        P         0.0.0.0:0

The bug details are,

CSCso85618 Bug Details

No Audio when Call is put on hold by remote party over Sip Trunk

Symptoms:

1. The MOH does not work between CM and CME.

2. There is no audio on the CME endpoint when the remote CCM party resumes the call on hold, conferences, or transfers with another CCM endpoint (scenario: CME - CUBE - CCM).

Conditions:

Symptom 1 is observed if the phone registered to the CME is put on hold by the CM, then the CME phone does not hear the MOH.

Symptom 2 is observed if the CCM endpoint does a conference, hold, or transfer.

Workaround: Use an MTP.

Important

The following restriction exists for multicast music on hold (MOH) when a media termination point (MTP) is invoked. When an MTP resource gets invoked in a call leg at a site that is using multicast MOH, the caller receives silence instead of music on hold. To avoid this scenario, configure unicast MOH or Tone on Hold instead of multicast MOH.

CTI devices do not support the multicast Music On Hold feature. If a CTI device is configured with a multicast MOH device in the media resource group list of the CTI device, call control issues may result. CTI devices do not support multicast media streaming.
